Current Displayed Robots

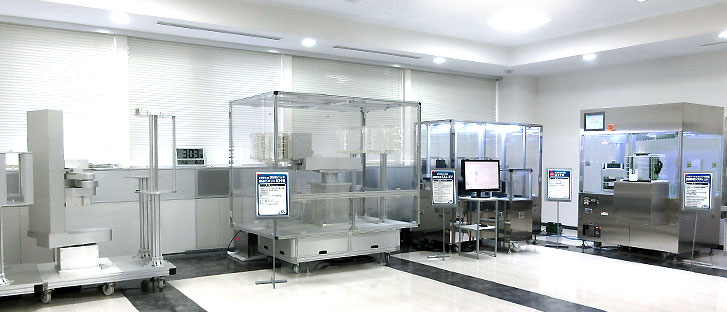

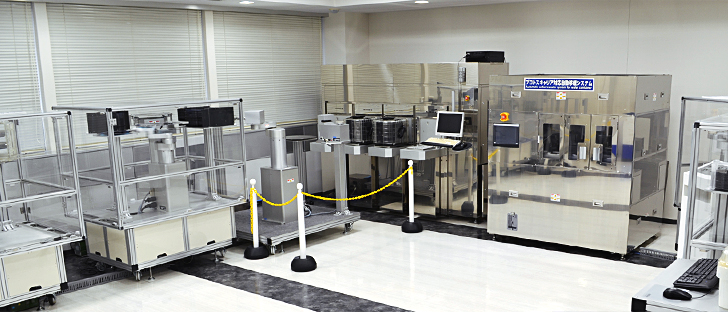

New models and main products are on display in Head Office Showroom.
Please contact the address above for a visit.

GCR4210 (Robot with end-effectors with rotation function)
Robot with end-effectors with rotation function: GCR4210
Rotation function on end-effector units shortens tact time.

Tape-frame handling robot
Tape-frame handling robot: MTCR4160
Accessible to all slots in the cassette by random access. Available for tape frames for up to 300 mm wafers.

GCR4210-300-AM
4-Axis horizontal and multi-joint type clean robot for 300mm wafer: GCR4210-300-AM
High-speed wafer handling to the 2 FOUP cassettes placed side by side is available without track axis.

Clean robot with batch end-effector for 5 pieces of wafer
Clean robot with batch end-effector for 5 pieces of wafer: MTCR4160L
High-speed handling of cassette with different pitches for such as vertical furnace.

New Aligner SAL3000HV series (Full auto-adjustment version)
New Aligner SAL3000HV series (Full auto-adjustment version)
Self-adjustment aligner that allows alignment for various kinds of wafers. Downtime can be reduced significantly.

Clean robot & Aligner for handling 450mm wafer
Clean robot & Aligner for handling 450mm wafer: GCR4280-420-AM/SAL30J1HV
High-speed handling robot for 450mm wafer with edge grip end-effector and flip function. New aligner for notchless wafer.

STCR4160SN/SAL3481HV
Clean robot & Aligner for handling wafer:STCR4160SN-300-CM/SAL3481HV
New twin-arm robot with low-cost, high-speed handling, and no step-out error. New aligner available for any material of wafer.

Automatic wafer transfer system for wafer container
Automatic wafer transfer system for wafer container: SSY-11010
High accuracy handling of thin wafer inside the wafer container.

SSY-10000
Table-top loader system for 100mm wafer: SSY-10000
Available for various types of wafers; 2, 3 inch, 100mm glass, sapphire, SiC, or GaN or others

SSY-10000
Table-top Loader System: SSY-10000
Resolved the problems and issues caused by manual handling of wafers. Also improved product quality and yield ratio.

300mm SORTER SYSTEM
SORTER SYSTEM (4-port inline type with 300 wafers/h throughput): 300mm SORTER SYSTEM
Pick up 300mm wafers from FOUP cassette and sort. Various sorting tasks following the customer's designs are available.

Bernoulli type end-effector and Bernoulli hand for thin or warped wafer
Bernoulli type end-effector (Contact type/Non-contact type) and Bernoulli hand for thin or warped wafer
Low-cost Bernoulli type end-effector available for customization. As an ideal end-effector for thin and warped wafers, we provide the Bernoulli type end-effector at its most suitable design according to the customers’ system layout.
