Standard Data Copy Manual

Data Copy Manual

1. Setting of the controller for communication
* Once the controller setting is completed, there is no necessity of the setting from the next start-up.

* The controller setting dialog box will automatically appear when JELDATA3 is booted for the first time.

* For window functions, please refer to here.
* For JELDATA3 setup, please refer to here.
* For the choice of the robot series, please refer to the “List of the robot series” and select the appropriate robot series.

Example: Set the controller for the GHR Robot

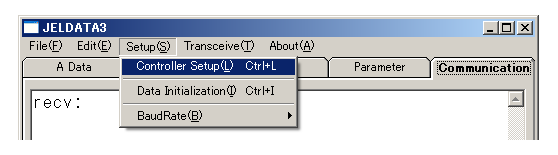

(1) From the menu: Select [Setup] - [Controller Setup]
controller setup

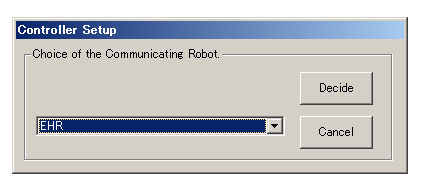

(2) Controller Setup dialog box appears.
controller setup dialog box

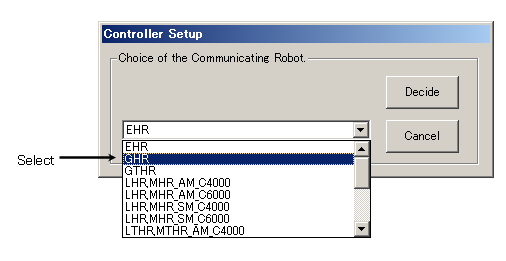

(3) Select “GHR” from the list.
select the communicating robot

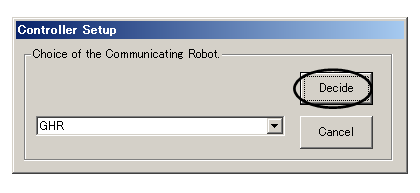

(4) Click the [Decide] button and start controller setting.
confirm the communicating robot
