Standard Data Copy Manual

Data Copy Manual

3. Saving controller data into PC
Example: Receives “D Data” from the controller and saves it into the PC as the file name“speed.ddt”.

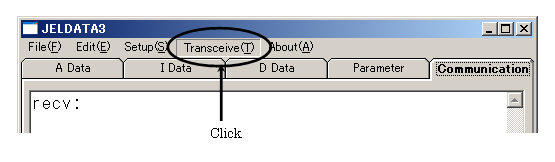

(1) Click [Transceive] on the menu.
transceive tab

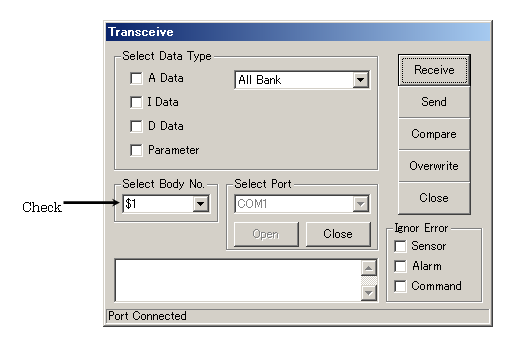

(2) The [Transceive] dialog box appears. Confirm the controller body number.
transceive dialog box
File type Extension
“A Data” file (point data) adt
“I Data” file (compound command) idt
“D Data” file (speed data) ddt
Parameter file pdt

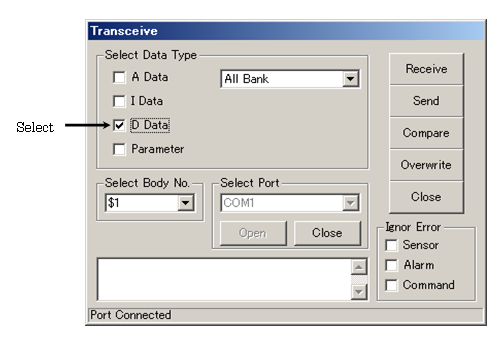

(3) Select “D Data” from [Select Data Type].
select data type

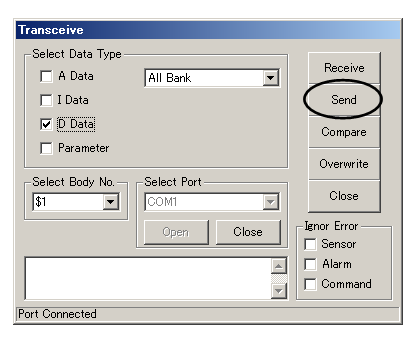

(4) Click the [Send] button to send the data.
send button
(5) Click the [Yes] button on the Confirmation dialog box to start sending the data.
*It varies depending on the JELDATA3 ver.
send data message

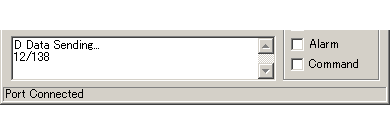

(6) While sending the data, the progress is shown on the status bar.
status bar when data is being sent
(7) When the data sending is completed, click the [OK] button on the message.
confirm message
*When communication is not available or error messages appear from the controller, please refer to the "Error Messages".

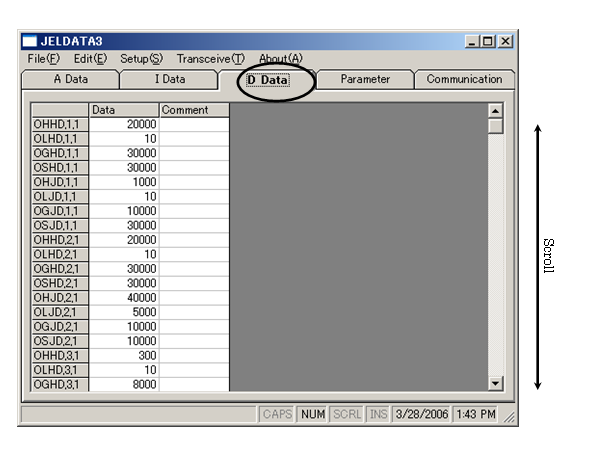

(8) Click the [D Data] tab in the main window to display the data. Use the scroll bar or the arrow key to check the data.
D data tab

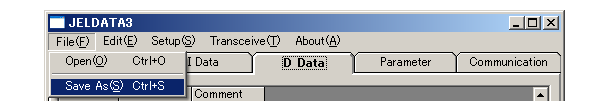

(9) Select [File] - [Save As] from the menu in order to save the received data.
save the file

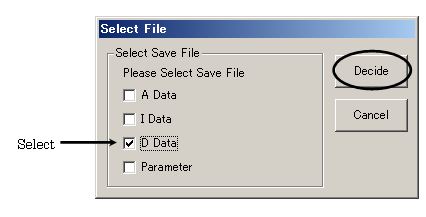

(10) Select [D Data] and click the [Decide] button on the [Select File] dialog box.
select the file to save

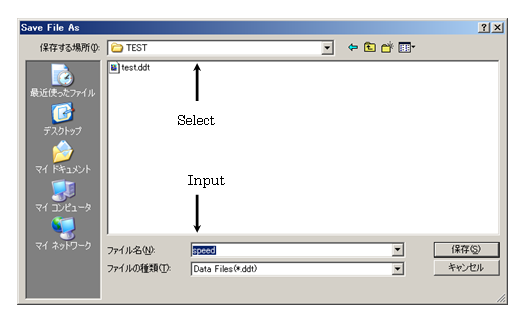

(11) The [Save File As] dialog box appears. Designate the location to save in and input the file name as “speed”. (The extension “.ddt” will be automatically added.)
save the file

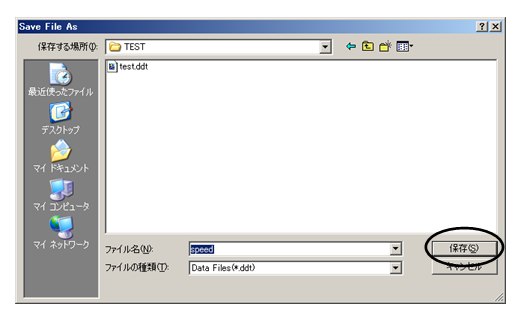

(12) Click the [Save] button to save it into the file.
save the file
