Robot for Semiconductor

SVCR3330S (Handling susceptor/tray)3-Axis Cylindrical Coordinate Clean Robot

Product Video

Usage Environment/Specifications

Product Profile

Model Name	SVCR3330S
Environment	Vacuum (Temp. 15°C to 50°C)
Environment	Driving unit：Clean room atmosphere (Temp. 15°C to 40°C)
Arm	Single arm
Operating Range	640mm (3rd joint center)
Vertical Stroke	60mm
Payload Capacity	10kg (calculated for the arm 3rd joint)

List of Product Model

Product Model		Vertical Stroke
SVCR3330S-060-PM		60mm

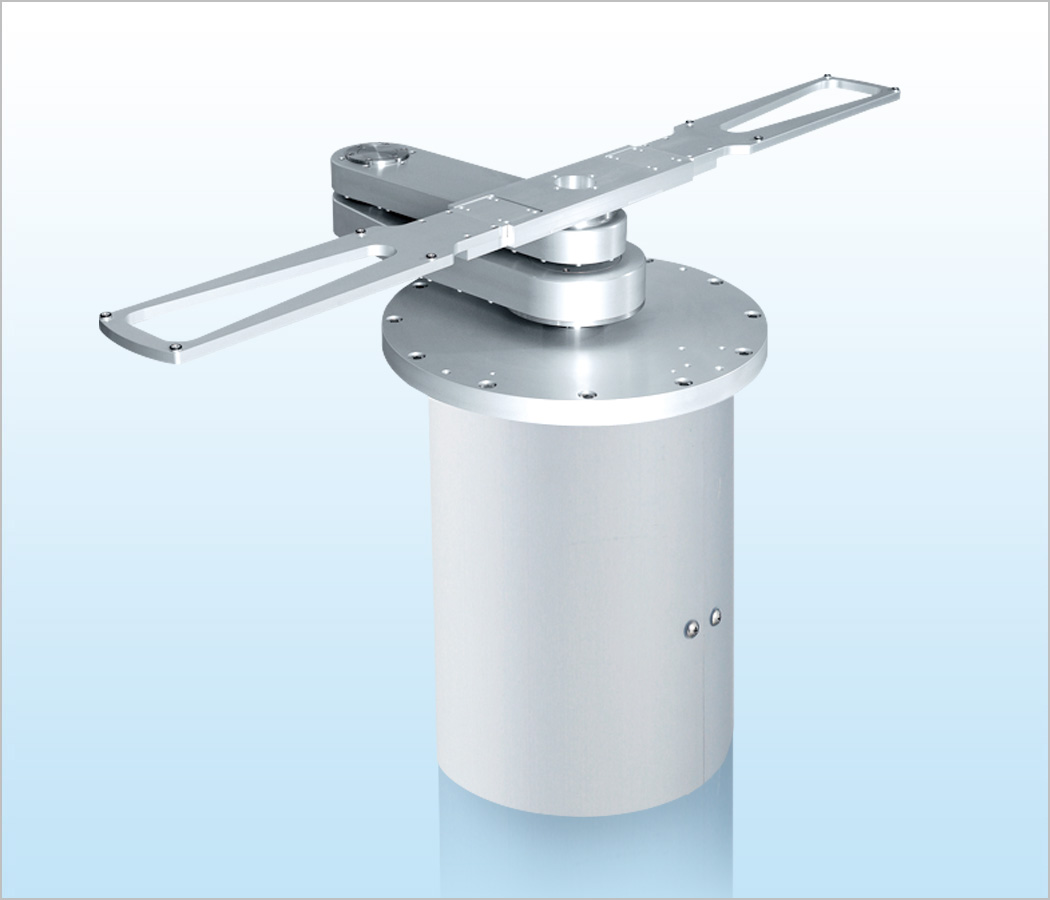

The image above and the video are of SVCR3330S-060-PM.

Characteristics

Designed for handling susceptor tray up to 4kg with shuttle type twin end-effector in the vacuum chamber of production line and inspection line.
Cost performance is superior compared to LVHR series.

Magnetic fluid sealing is used for arm joint.
Vacuum sealing: Magnetic fluid sealing and bellows are used.
For cleanliness: 5µm mesh filter installed for exhaust ventilation in the arm.
Motion monitoring is available.
RS232C and parallel photo I/O are standard for control.
2-phase stepping motor installed in all axes.
Servo motor type is available.
High-speed, high-accuracy wafer handlingby S-curved speed control.
Wafer holding: end-effector with passive edge or edge grip type End-effector.
End-effector material: CFRP, Al, ceramic, or others.
Optimal end-effector is selectable according to the carrying object and line layout.

Standard Specifications

Representative specifications of SVCR3330S-060-PM (stepping motor type)
It can be changed depending on the carrying object and end-effector type.
Specifications of Robot
Robot Model	SVCR3330S-060-PM
Carrying Object	342mm tray x 2 (Representative example)
Robot Model Type	Cylindrical coordinate type	Control Axis	3-axis
Motor Type	Stepping motor
Operating Range	From the robot center to the wafer center	Rotation Angle (Theta-axis)	Vertical Stroke (Z-axis)
Operating Range	1075mm	330deg	60mm
Carrying Speed (Ave.)	Arm (R-axis)	Rotation Angle (Theta-axis)	Vertical Stroke (Z-axis)
Carrying Speed (Ave.)	250mm/sec	90deg/sec	30mm/sec
Carrying Speed (Max.)	Arm (R-axis)	Rotation Angle (Theta-axis)	Vertical Stroke (Z-axis)
Carrying Speed (Max.)	380mm/sec	135deg/sec	45mm/sec
Resolution	Arm (R-axis)	Rotation Angle (Theta-axis)	Vertical Stroke (Z-axis)
Resolution	Below 65µm	0.0056deg	2.777µm
Handling level	188.5mm (Mounting level to end-effector level)
Repeatability	Within ±0.2mm
Cleanliness	Magnetic fluid sealing and filter
Vacuum resistance	1.33×10^-6Pa
Utility	Power: DC24V±10% 11A
Specifications of Controller
Controller Model	C4000 series
Interface	RS232C and parallel photo I/O

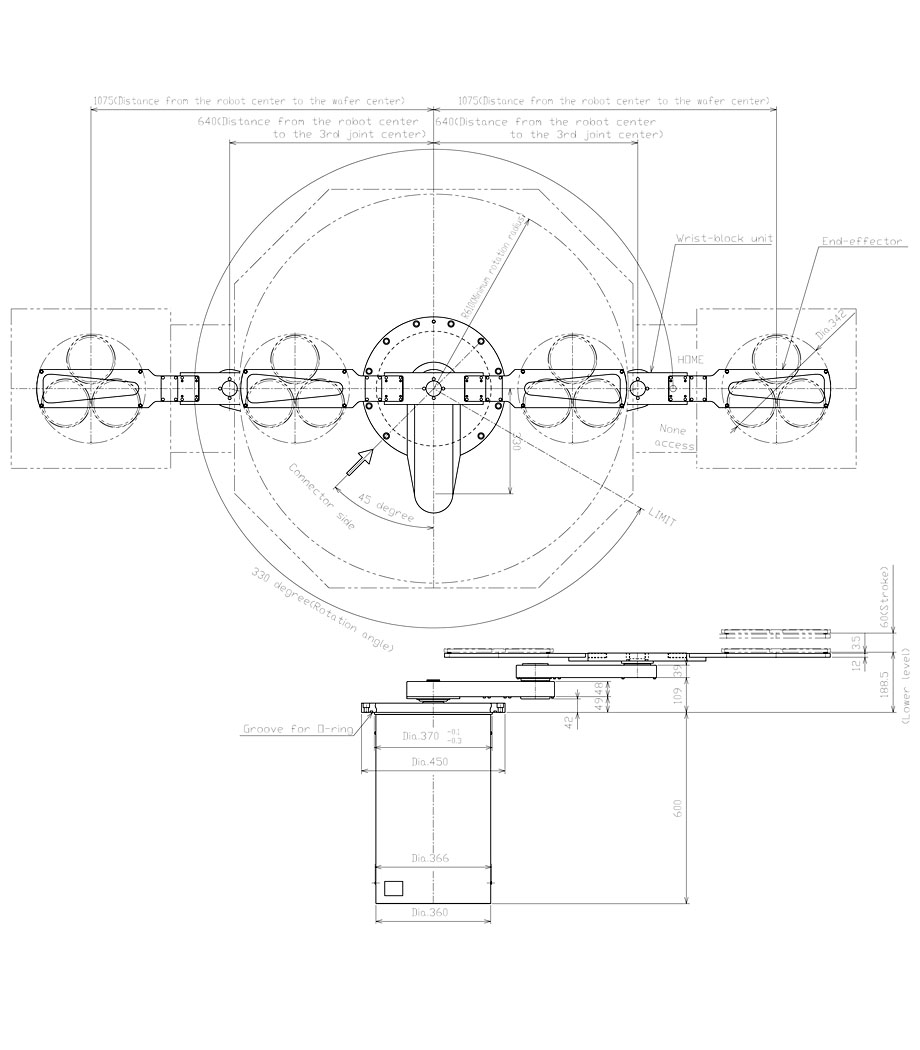

Outline Drawing (Standard)
