SSY-10020 (Loader/Unloader System)Wafer transfer system


Product Video

Usage Environment/Specifications

Product Profile

Product ModelSSY-10020
EnvironmentClean room atmosphere
Wafer Size100mm wafer, 330mm susceptor/tray
Carrying ObjectWafer, susceptor, tray
Contact us for the detailed specifications.

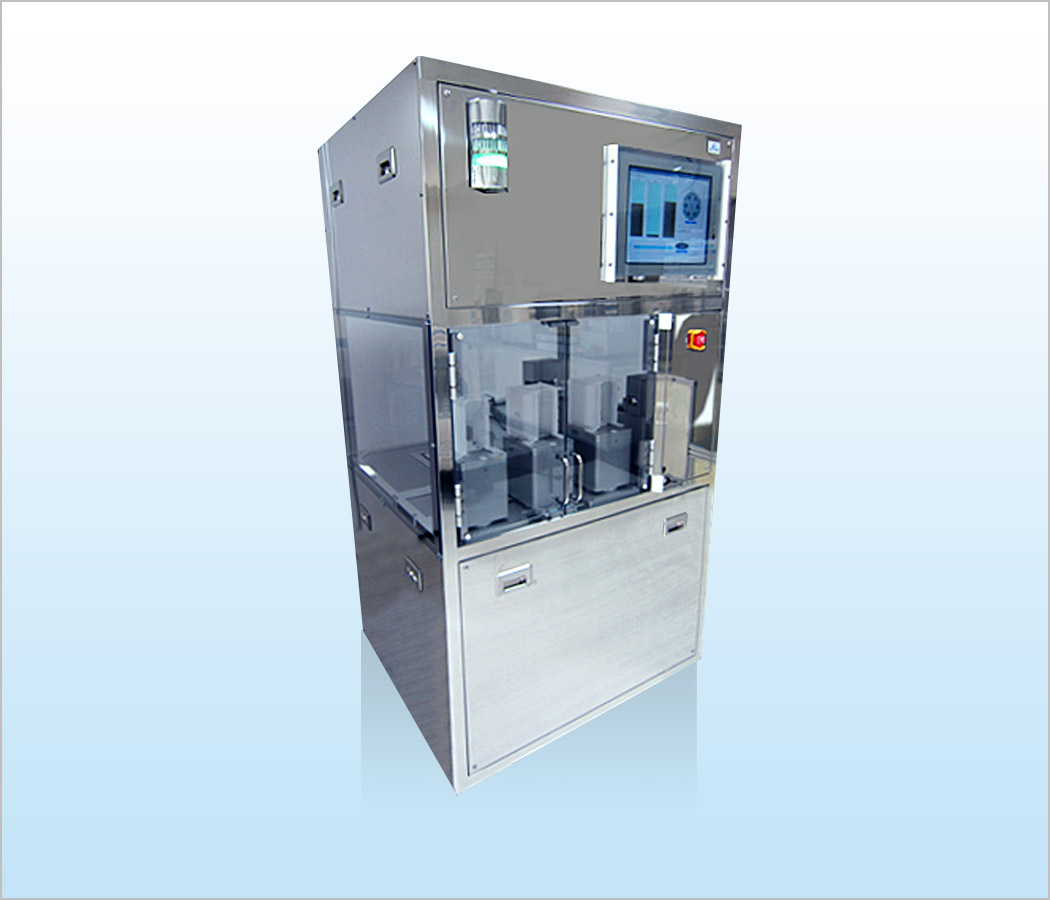

  • The image above and the video are of SSY-10020.


New type of wafer handling system for wafers including LED.

  • Automatic loader/unloader for batch processing such as susceptors or trays is achieved.
  • Aligner is installed both for wafers and susceptors, which provides the centering and indexing of wafer notch and susceptors.

Standard Specifications

Contact us for the detailed specifications.

Outline Drawing (Standard)


Other Option

*The teaching box appeared in the table may be unavailable depending on the specifications.
