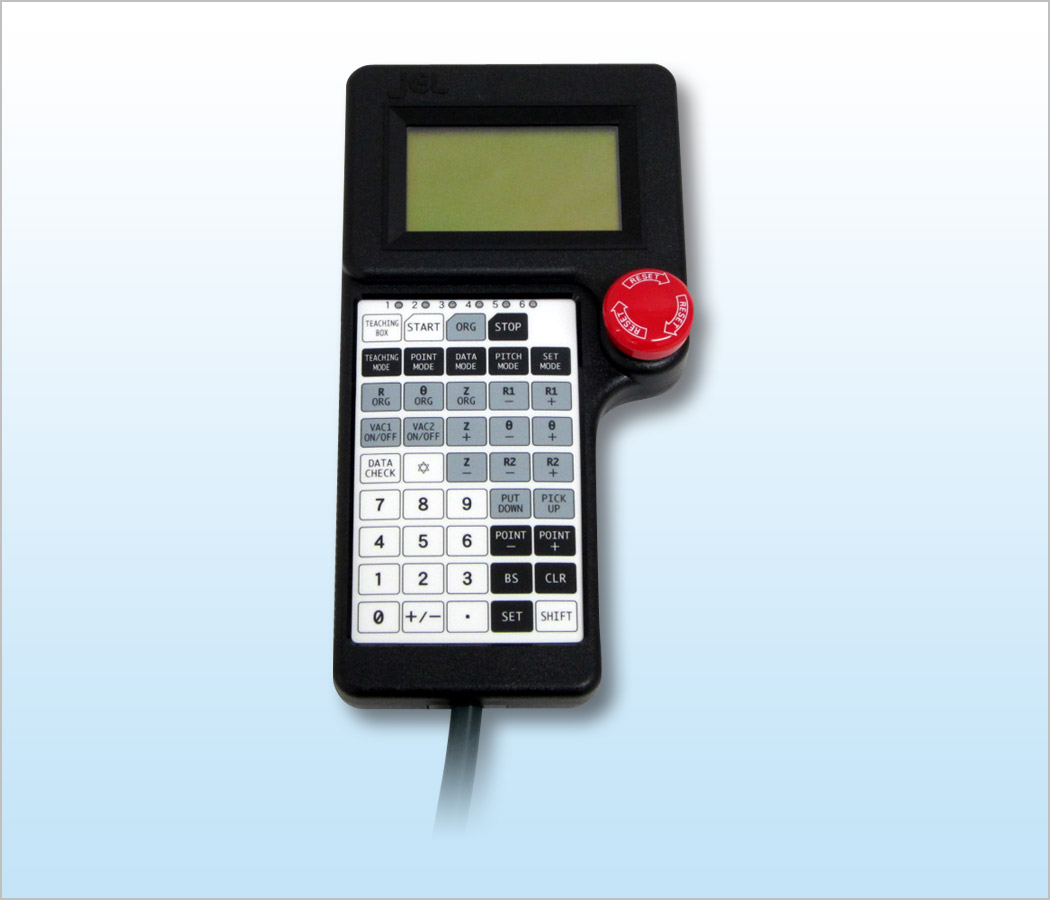

JCT1-0500Teaching Box
|
Usage Environment/SpecificationsProduct Profile
|
Characteristics
Used for teaching operation of robot.
Reading error codes is also available.
- Equipped with 3-position dead-man switch
- Easy to operate, one-handed type, weighing only 500g (cable excluded)
- Equipped with push-button self-diagnosis function by internal software
Standard Specifications
| Specifications | |||
|---|---|---|---|
| Input Voltage | DC5V (±5%) | ||
| Communication | RS232C | ||
| Environment | 0 to 40℃ (No condensation) | ||
| Attached Cable | Up to 5 meters | ||
| Emergency Stop Contact | Normally open contact | ||
| External Dimensions | W118×H225×D33（w/contrast adjustment hole attached/Emergency stop button excluded) | ||
| Mass | 500g（Cable excluded) | ||
| Display Screen | LCD monochrome graphic display (66.6×33.3mm, 20×8 characters, 128×64 dots) | ||
| Connector | HR10-7P-6P(73)(HIROSE ELECTRIC CO., LTD.) | ||
| Emergency Stop Button | A165E-S-03U (Red) (OMRON) Output for emergency stop switch: Photo coupler output (UL508 and EN418 standard compliant) |
||
| Deadman Switch | A4E-B200HS (OMRON) 3-position enabling switch (UL508 and ANSI/RIA R15.06-1999 standard compliant) |
||
| Key Sheet | Thin dome array sheets: 9 columns x 5 rows (45 pcs) | ||
| Applicable Robot Type | Cylindrical coordinate type | ||
| Connector Specifications | |||
| Pin No. | Signal | Contents | Assignment of Connector Pin |
| 1 | GND | Ground for power supply |
 View from Teaching box |
| 2 | TXD | RS232C transmitted data | |
| 3 | RXD | RS232C received data | |
| 4 | EMG | Emergency stop button output | |
| 5 | DSW | Deadman switch output | |
| 6 | +5V | Power: DC+5V | |

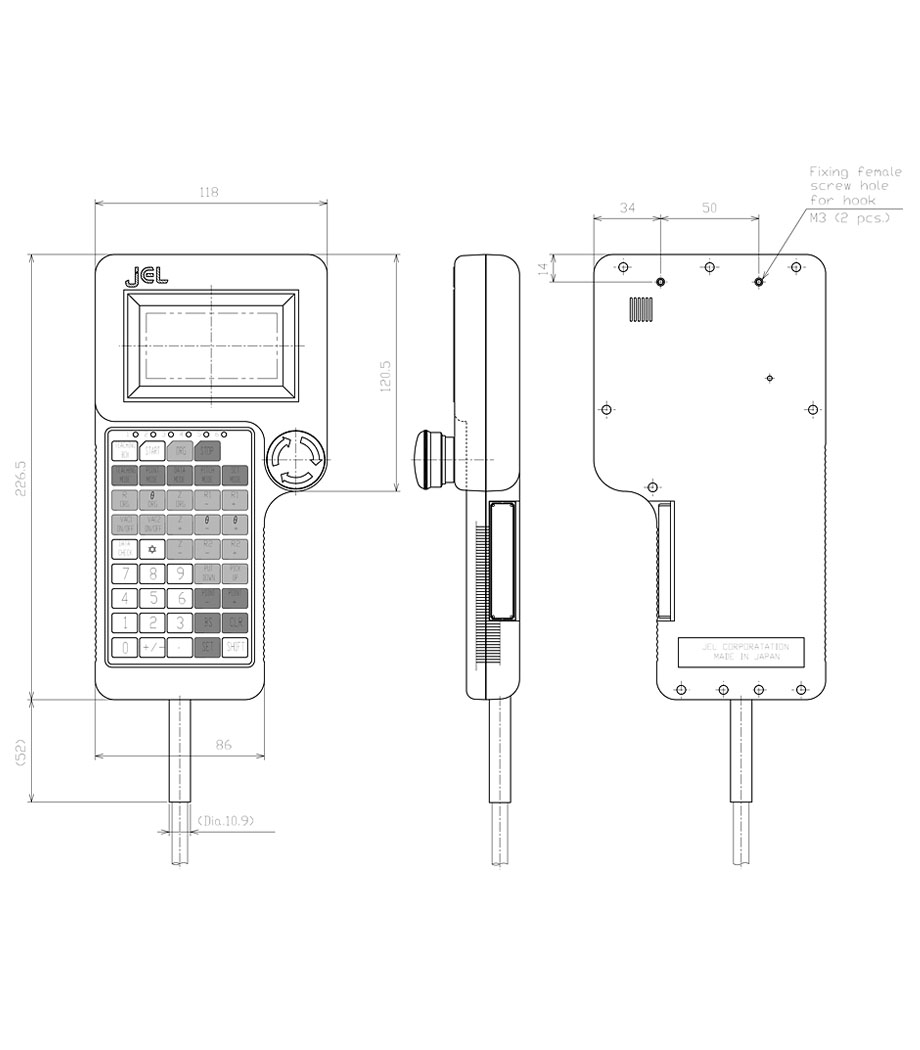

| Outline Drawing (Standard) |
|---|
|
